ASTM A519 Alloy Pipes
ASTM A519 Alloy Pipes ASTM A519 Alloy Pipes ASTM A519 Alloy Pipes ASTM A519 Alloy Pipes
ASTM A519 Alloy Pipes ASTM A519 Alloy Pipes ASTM A519 Alloy Pipes ASTM A519 Alloy Pipes

ASTM A519 Alloy Pipes

Next Inquire Now

Specification:

ASTM A519- specification covers for several grades of carbon and alloy steel mechanical tubing, either hot-finished or cold-finished. The steel used in the mechanical tubing may be cast in ingots or may be strand cast. When steel of different grades is sequentially strand cast, identification of the resultant transition material is required. The seamless tubing is a tubular product made without a welded seam. It is usually manufactured by hot working steel, and if necessary, by subsequently cold finishing the hot-worked tubular product to produce the desired shape, dimensions and properties. The tubes shall be furnished in the following shapes: round, square, rectangular and special sections. Heat analysis shall be made to determine the percentages of the elements specified. If secondary melting processes are used, the heat analysis shall be obtained from one remelted ingot or the product of one remelted ingot of each primary melt. The tubing shall be coated with a film of oil before shaping to retard rust when specified.


Grade and Chemical Composition (%)

Grade

C

Mn

P≤

S≤

Si

Cr

Mo

1008

≤0.10

0.30-0.50

0.040

0.050

-

-

-

1010

0.08-0.13

0.30-0.60

0.040

0.050

-

-

-

1018

0.15-0.20

0.60-0.90

0.040

0.050

-

-

-

1020

0.18-0.23

0.30-0.60

0.040

0.050

-

-

-

1025

0.22-0.28

0.30-0.60

0.040

0.050

-

-

-

1026

0.22-0.28

0.60-0.90

0.040

0.050

-

-

-

4130

0.28-0.33

0.40-0.60

0.040

0.050

0.15-0.35

0.80-1.10

0.15-0.25

4140

0.38-0.43

0.75-1.00

0.040

0.050

0.15-0.35

0.80-1.10

0.15-0.25


Mechanical Properties:


Grade

Condition

MPa Tenslle Point

Yield Point

Elongation

1020

CW

≥414

≥483

≥5%


SR

≥345

≥448

≥10%


A

≥193

≥331

≥30%


N

≥234

≥379

≥22%

1025

CW

≥448

≥517

≥5%


SR

≥379

≥483

≥8%


A

≥207

≥365

≥25%


N

≥248

≥379

≥22%

4130

SR

≥586

≥724

≥10%


A

≥379

≥517

≥30%


N

≥414

≥621

≥20%

4140

SR

≥689

≥855

≥10%


A

≥414

≥552

≥25%


N

≥621

≥855

≥20%



Please note the meaning of below abbreviation in above table:

HR----Hot Rolled

CW----Cold Worked

SR----Stress Relieved

A----Annealed

N----Normalized


Ordering Information

Orders for material under this specification should include the following, as required, to describe the desired material adequately:

Quantity

Feet, meters, or number of lengths

Name of material

Seamless Alloy Steel Pipe

Grade

STANDARD AND STEEL GRADE

Manufacture

Hot-finished or cold-drawn

Size using one of the following:

NPS and Schedule Number

Outside Diameter and Nominal Wall Thickness

Length

Specific or Random

End Finish

Size (mm) we can supply:

Hot-rolled: O.D.: 51-508; W.T.:7∼60; L: max 16000

Cold-drawn: O.D.: 10-50; W.T.:2∼10; L: max 16000

Hot-expanded:O.D.: 325-1020; W.T.:6∼50; L: max 12000 and other specifications in accordance with customer requirements.

Packing:

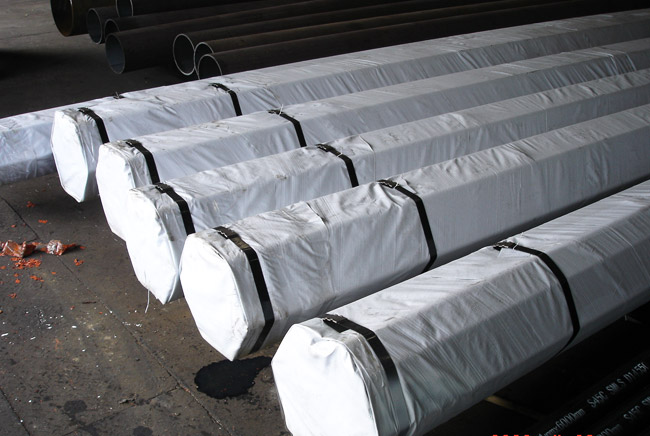

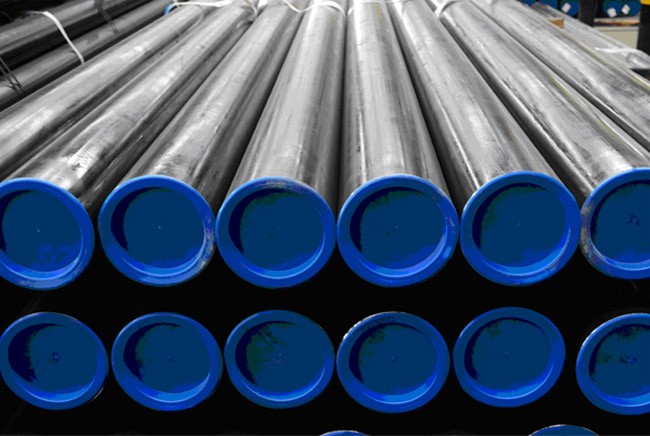

Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection

Inspection and Test:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test, Nodestructive Test, Hydrostatic Test.

Surface Treatment:

Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting, Epoxy & Fbe Coating Painting as requested.
